2D Laser EAGLE eVision 1530 F3.0 AF
| Net price | 188011 USD |
| Local tax (VAT) | 23 % |
| Company name |
Maszyneria
Sławomir Konieczko |
| Address | Wita Stwosza 18/13 |
| City | Jelenia Góra |
| Post code | 58-560 |
| region | Dolnośląskie |
| Country | Poland |
| Telephone | +48 603510566 |
| Category | Lasers EAGLE › |
| Manufacturer | EAGLE › |

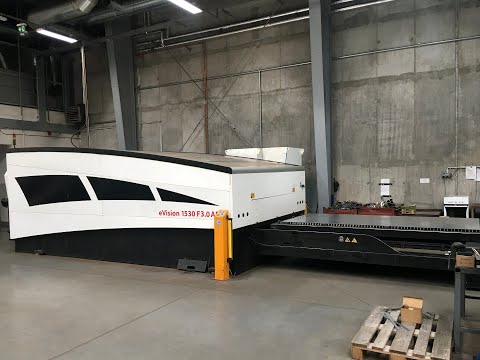

2D Laser EAGLE eVision 1530 F3.0 AF was manufactured by the machine manufacturer EAGLE. Machine EAGLE eVision 1530 F3.0 AF was built in 2012 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2012 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
Technical parameters | |
|---|---|
| Laser power | 3 kW |
| Length of the working table | 3000 mm |
| Width of the working table | 1500 mm |
| Number of tables | 2 pcs |
| Maximum thickness of the cut sheet metal (Normal Steel) | 20 mm |
| Maximum thickness of the cut sheet metal (Stainless Steel) | 12 mm |
| Maximum thickness of the cut sheet metal (Aluminum) | 10 mm |
| Travel length X-axis | 120 mm |
| Maximum feed rate in X-axis | 200 m/min |
| Maximum feed rate in Y-axis | 200 m/min |
| Maximum feed rate with simultaneous operation of the X and Y axis drives | 300 m/min |
| Accuracy of positioning | 0.03 mm |
| Total power demand | 43 kW |
| Machine height | 2300 mm |
| Machine length | 9800 mm |
| Machine width | 3900 mm |
| Machine weight | 23.3 t |
Equipment | |
|---|---|
| BECKHOFF CNC | |
| CNC control | |
| Fibre laser | |
| X-axis linear motor | |
| Y-axis linear motor | |
| Z-axis linear motor | |
| Collision detection system | |
| Pallet changer | |
| Exhaust extractor | |
