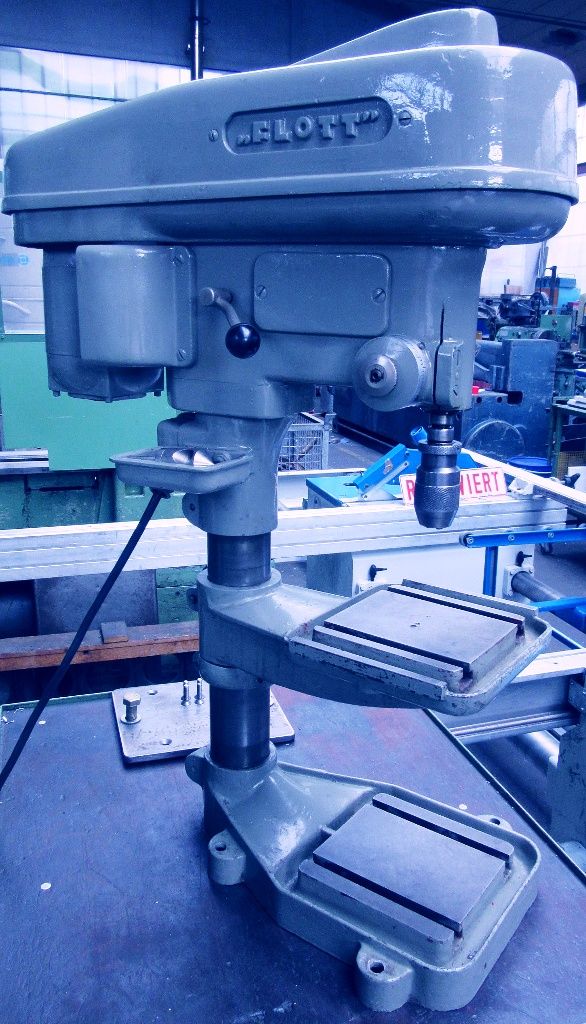

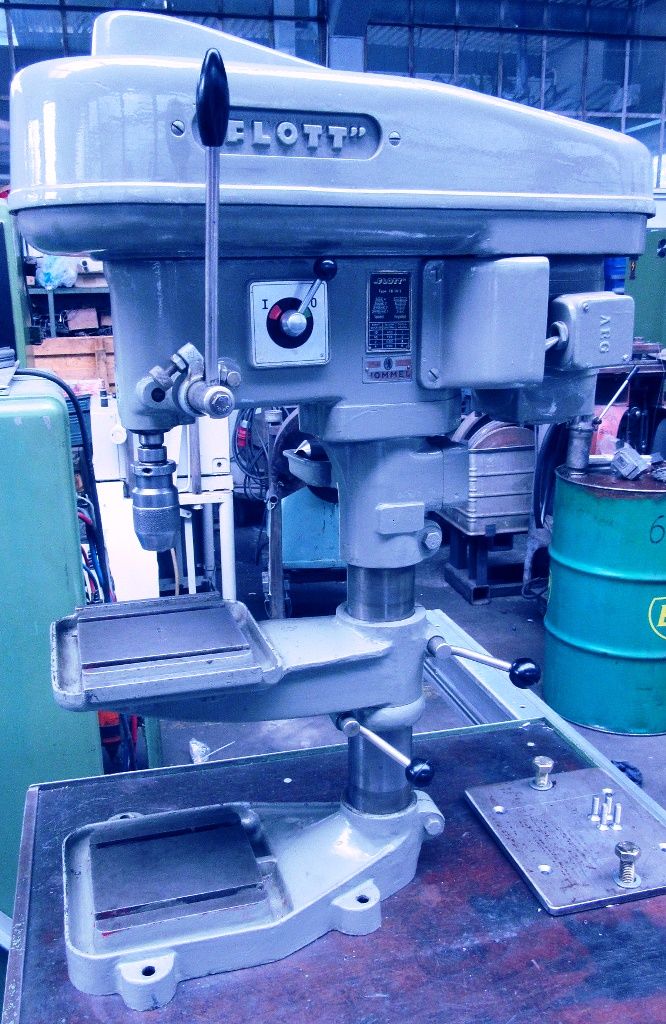

Bench Drilling Machine FLOTT TB 10 - I
Bench Drilling Machine FLOTT TB 10 - I was manufactured by the machine manufacturer FLOTT. Machine FLOTT TB 10 - I was built in 1970 year.
General data | |
|---|---|
| Location | Germany |
| Year of manufacture | 1970 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Loading | The seller organizes the loading - included in the price of the machine |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
| Status | A test can be performed |
Technical parameters | |
|---|---|
| Maximum drilling diameter in steel | 13 mm |
| Maximum spindle travel | 60 mm |
| Throat depth (distance of the spindle axis from the frame) | 192 mm |
| Minimum rotary speed of the spindle | 410 1/min |
| Maximum rotary speed of the spindle | 1700 1/min |
| Power of the spindle drive | 0.8 kW |
| Total power demand | 1 kW |
| Machine weight | 0.07 t |
Equipment | |
|---|---|
| Belt transmission of the spindle drive | |
| Central lubrication | |
| Technical documentation | |
| CE Declaration | |
