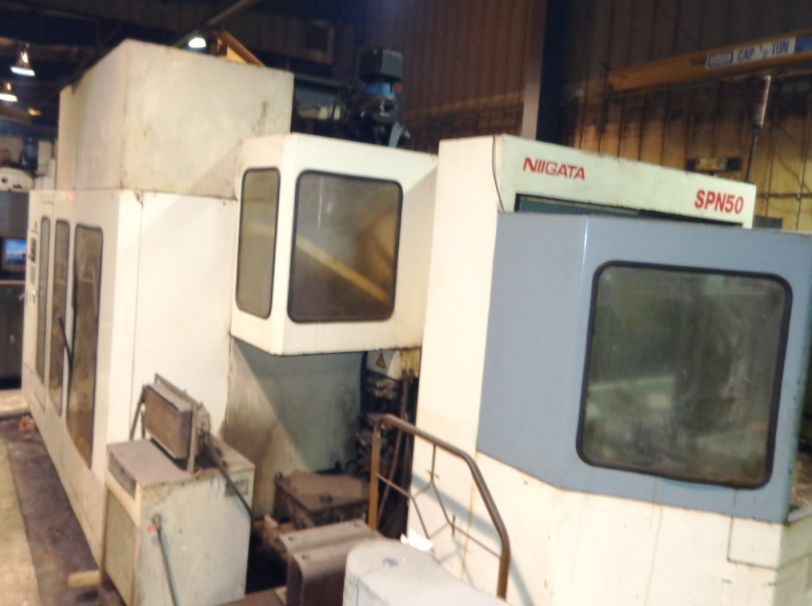

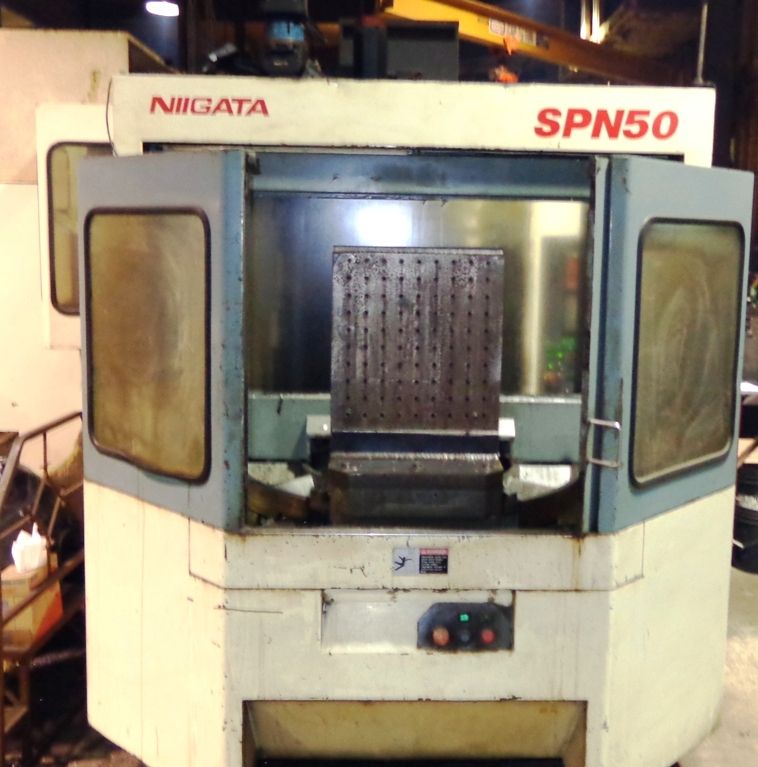

CNC Horizontal Machining Center NIIGATA SPN-50

Category CNC Milling Machines and Machining Centers NIIGATA ›
Manufacturer NIIGATA ›

ARCHIVED AD
CNC Horizontal Machining Center NIIGATA SPN-50 was manufactured by the machine manufacturer NIIGATA. Machine NIIGATA SPN-50 was built in 1995 year.

General data

Location United States
region Wisconsin
Year of manufacture 1995
Warranty Without warranty

Technical parameters

Length of the working table 500.4 mm
Width of the working table 500.4 mm
Power of the spindle drive 22.4 kW
Number of tools in the magazine 128 pcs
Maximum rotary speed of the spindle 12000 1/min
Travel length X-axis (mechanical feed) 749.3 mm
Travel length Y-axis (mechanical feed) 749.3 mm
Travel length Z-axis (mechanical feed) 749.3 mm
Maximum feed rate in X-axis 666.8 mm/s
Maximum feed rate in Y-axis 666.8 mm/s
Maximum feed rate in Z-axis 666.8 mm/s

Equipment

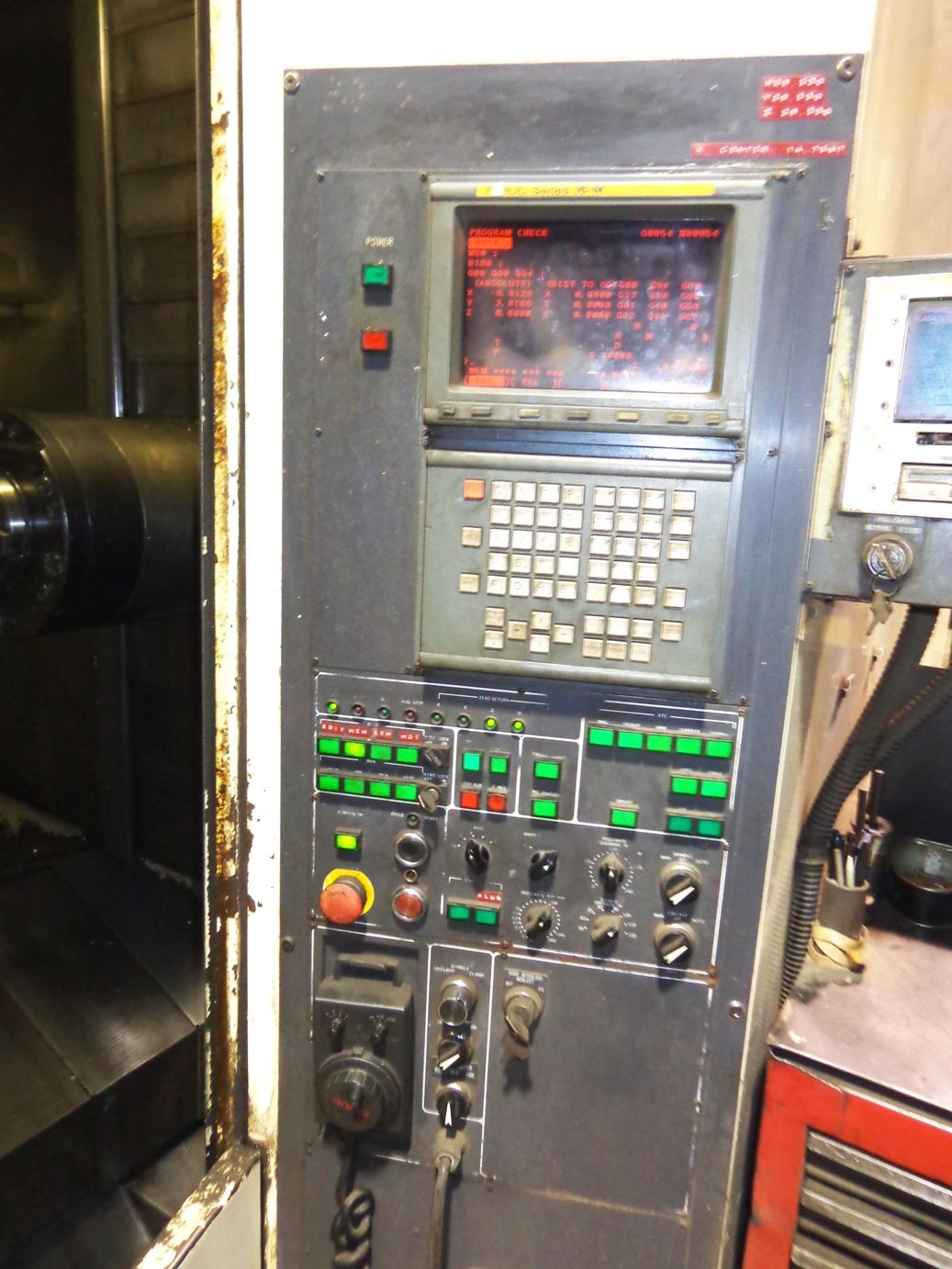

FANUC 16 M
Pallet changer
Rotary working table
