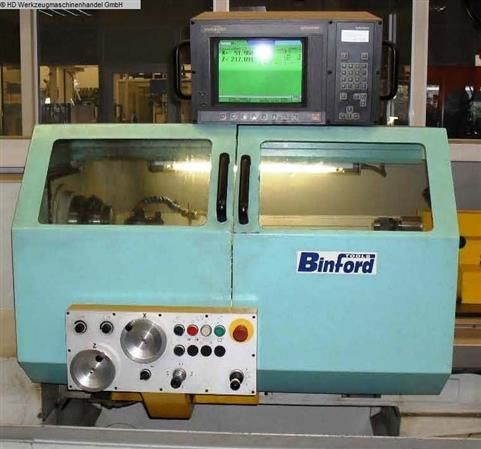

CNC Lathe DMT CD 480
CNC Lathe DMT CD 480 was manufactured by the machine manufacturer DMT. Machine DMT CD 480 was built in 1995 year.
General data | |
|---|---|
| Location | Germany |
| region | Hessen |
| Year of manufacture | 1995 |
| Warranty | Without warranty |
Technical parameters | |
|---|---|
| Maximum turning length (Z-axis) | 800 mm |
| Turning diameter over bed (max) | 475 mm |
| Turning diameter over cross slide (max) | 260 mm |
| Diameter of the spindle bore | 78 mm |
| Minimum rotary speed of the main spindle | 5 1/min |
| Maximum rotary speed of the main spindle | 3000 1/min |
| Workpiece weight in chuck (max) | 500 kg |
| Tailstock quill diameter | 60 mm |
| Maximum travel length of the tailstock quill | 120 mm |
| Total power demand | 28 kW |
| Length of the lathe | 2700 mm |
| Width of the lathe | 2600 mm |
| Height of the lathe | 2000 mm |
| Weight of the lathe | 2.5 t |
Equipment | |
|---|---|
| CNC technology cycles | |
| Liquid cooling system | |
