CNC Milling Machine DECKEL FP 5 TC

Category CNC Milling Machines and Machining Centers DECKEL ›
Manufacturer DECKEL ›

ARCHIVED AD

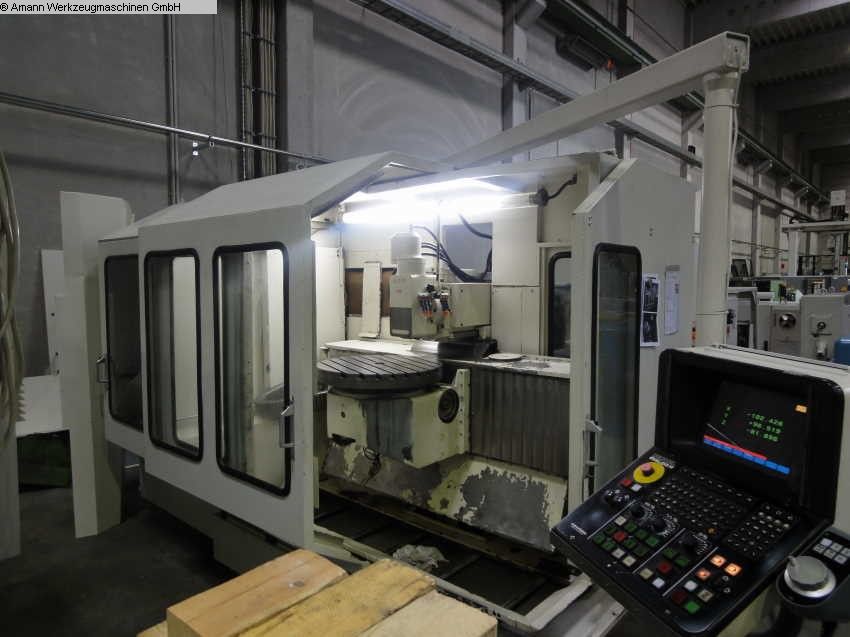

CNC Milling Machine DECKEL FP 5 TC was manufactured by the machine manufacturer DECKEL. Machine DECKEL FP 5 TC was built in 1988 year.

General data

Location Germany
region Bayern
Year of manufacture 1988
Warranty Without warranty

Technical parameters

Minimum rotary speed of the vertical spindle 18 1/min
Maximum rotary speed of the vertical spindle 6300 1/min
Travel length X-axis (mechanical feed) 710 mm
Travel length Y-axis (mechanical feed) 600 mm
Travel length Z-axis (mechanical feed) 445 mm
Maximum feed rate in X-axis 100 mm/s
Maximum feed rate in Y-axis 100 mm/s
Maximum feed rate in Z-axis 100 mm/s
Total power demand 13.5 kW
Machine height 2480 mm
Machine length 5200 mm
Machine width 3200 mm
Machine weight 5 t

Equipment

DECKEL DIALOG 11
Electronic wheel for manual operation
Rotary working table
Lighting
