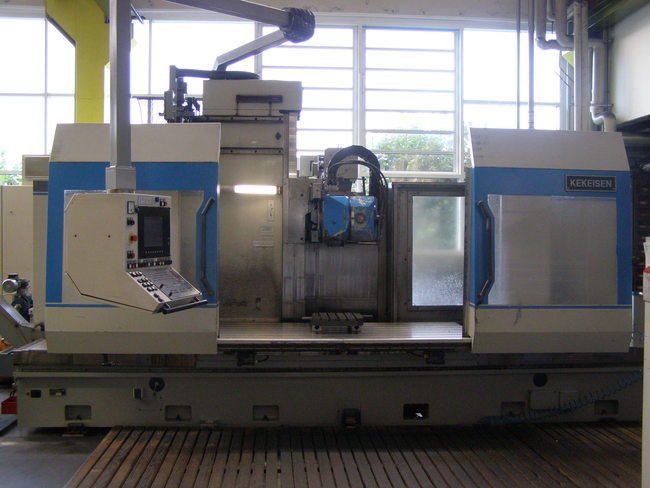

CNC Vertical Machining Center KEKEISEN UBF 2000/13

Category CNC Milling Machines and Machining Centers KEKEISEN ›
Manufacturer KEKEISEN ›

ARCHIVED AD
CNC Vertical Machining Center KEKEISEN UBF 2000/13 was manufactured by the machine manufacturer KEKEISEN. Machine KEKEISEN UBF 2000/13 was built in 1996 year.

General data

Location Germany
region Bayern
Year of manufacture 1996
Warranty Without warranty
Technical condition Very good

Technical parameters

Length of the working table 2200 mm
Width of the working table 960 mm
Maximum table load (evenly distributed) 6000 kg
Power of the spindle drive 30 kW
Number of tools in the magazine 30 pcs
Minimum rotary speed of the vertical spindle 20 1/min
Maximum rotary speed of the vertical spindle 3800 1/min
Travel length X-axis (mechanical feed) 2000 mm
Travel length Y-axis (mechanical feed) 1000 mm
Travel length Z-axis (mechanical feed) 1300 mm
Maximum feed rate in X-axis 10 mm/s
Maximum feed rate in Y-axis 10 mm/s
Maximum feed rate in Z-axis 10 mm/s

Equipment

HEIDENHAIN TNC 426 CA
