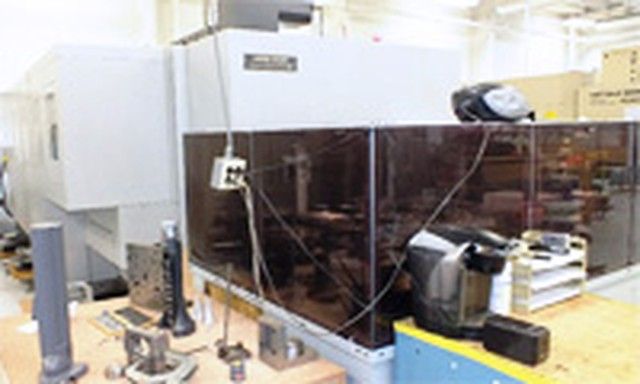

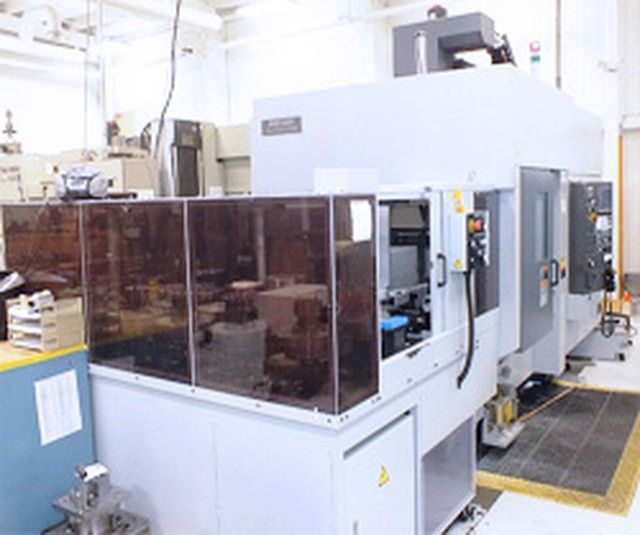

CNC Vertical Machining Center MORI SEIKI SUPERMILLER 400

Category CNC Milling Machines and Machining Centers MORI SEIKI ›
Manufacturer MORI SEIKI ›

ARCHIVED AD
CNC Vertical Machining Center MORI SEIKI SUPERMILLER 400 was manufactured by the machine manufacturer MORI SEIKI. Machine MORI SEIKI SUPERMILLER 400 was built in 2005 year.

General data

Location United States
region Colorado
Year of manufacture 2005
Warranty Without warranty

Technical parameters

Power of the spindle drive 22.4 kW
Number of CNC controlled axles 5 pcs
Number of tools in the magazine 180 pcs
Minimum rotary speed of the vertical spindle 35 1/min
Maximum rotary speed of the vertical spindle 12000 1/min
Minimum distance of the spindle from the table 66 mm
Maximum distance of the spindle from the table 515.6 mm
Travel length X-axis (mechanical feed) 609.6 mm
Travel length Y-axis (mechanical feed) 431.8 mm
Travel length Z-axis (mechanical feed) 449.6 mm
Maximum feed rate in X-axis 326.7 mm/s
Maximum feed rate in Y-axis 326.7 mm/s
Maximum feed rate in Z-axis 326.7 mm/s
Machine height 3081 mm
Machine length 2006.6 mm
Machine width 3276.6 mm
Machine weight 7.4 t

Equipment

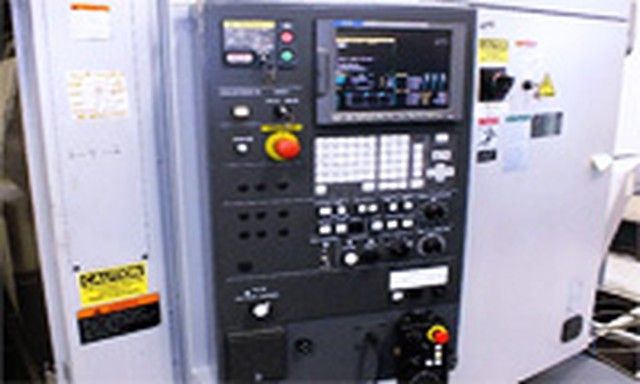

FANUC 16-M
Technical documentation
