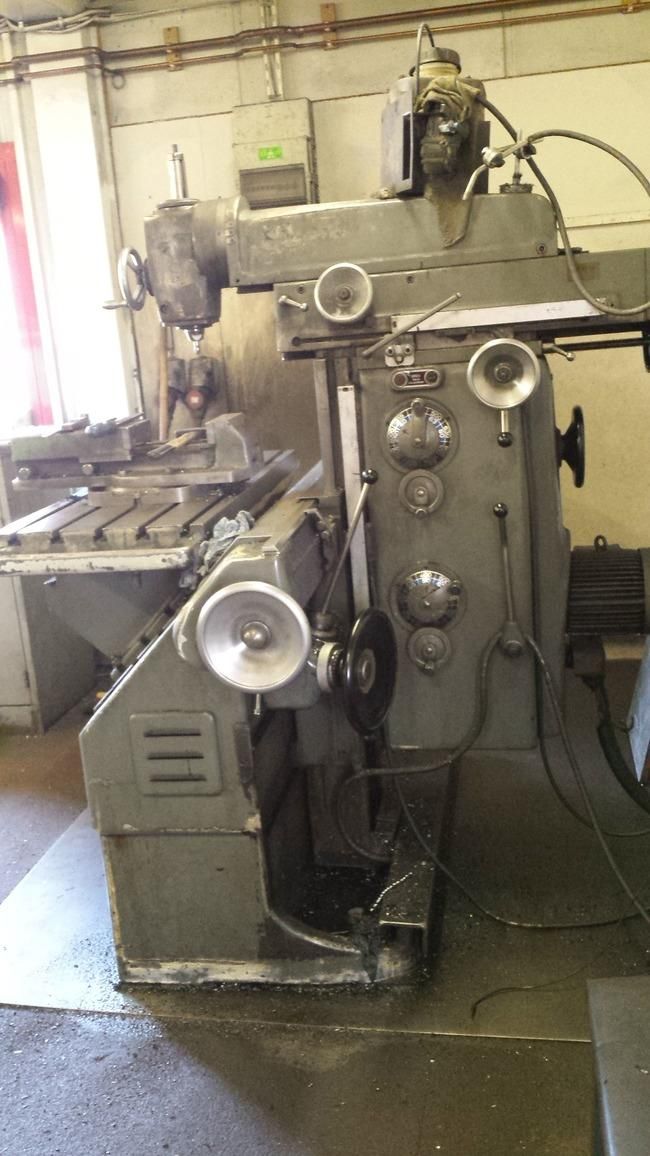

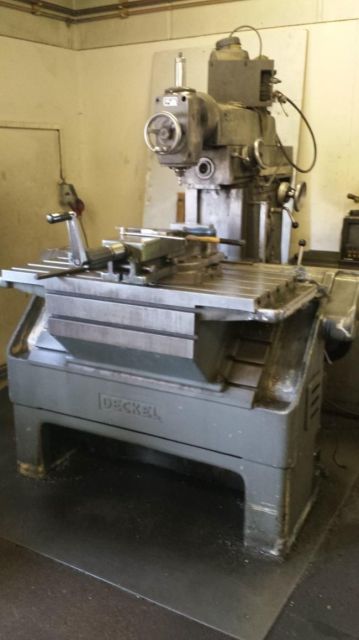

Toolroom Milling Machine DECKEL FP 2 LB

Category Milling Machines DECKEL ›
Manufacturer DECKEL ›

ARCHIVED AD
Toolroom Milling Machine DECKEL FP 2 LB was manufactured by the machine manufacturer DECKEL. Machine DECKEL FP 2 LB was built in 1972 year.

General data

Location Germany
region Nordrhein-Westfalen
Year of manufacture 1972
Warranty Without warranty

Technical parameters

Length of the working table 1000 mm
Width of the working table 440 mm
Minimum rotary speed of the vertical spindle 40 1/min
Maximum rotary speed of the vertical spindle 2000 1/min
Travel length X-axis (mechanical feed) 800 mm
Travel length Y-axis (mechanical feed) 300 mm
Travel length Z-axis (mechanical feed) 400 mm
Maximum feed rate in X-axis 25 mm/s
Maximum feed rate in Y-axis 25 mm/s
Maximum feed rate in Z-axis 25 mm/s
Total power demand 2.2 kW
Machine height 1850 mm
Machine length 1570 mm
Machine width 1680 mm
Machine weight 2 t

Equipment

Digital readouts
