Universal Milling Machine CORREA F2 UE

Category Milling Machines CORREA ›
Manufacturer CORREA ›

ARCHIVED AD

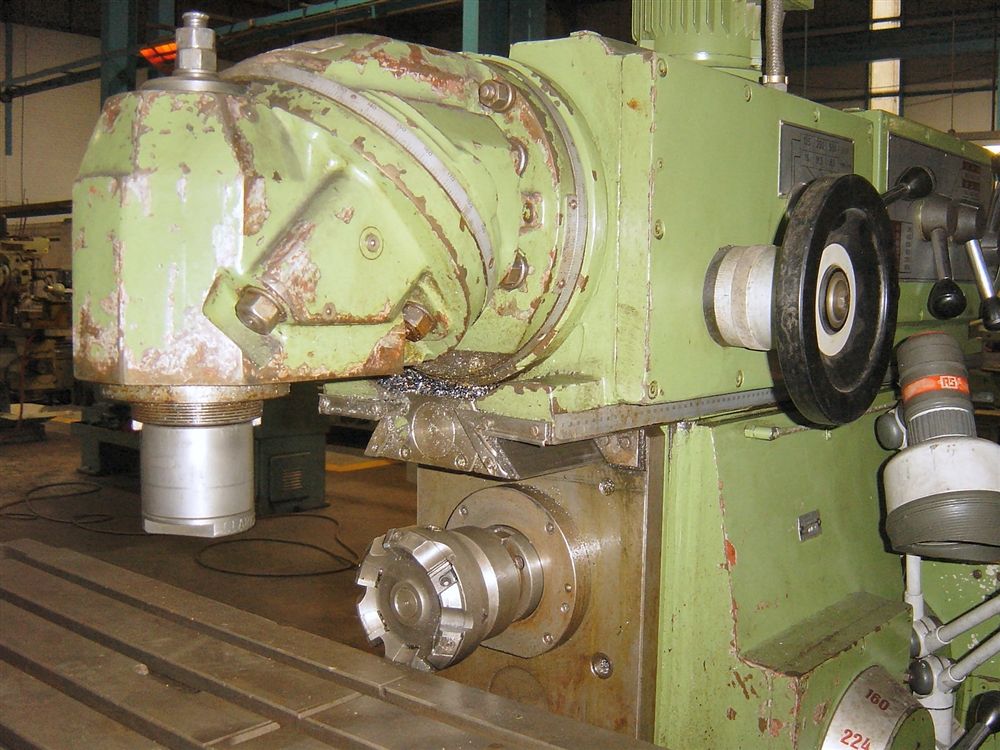

Universal Milling Machine CORREA F2 UE was manufactured by the machine manufacturer CORREA. Machine CORREA F2 UE was built in 1980 year.

General data

Location United Kingdom
region Leicestershire
Year of manufacture 1980
Warranty Without warranty

Technical parameters

Length of the working table 1200 mm
Width of the working table 450 mm
Minimum rotary speed of the vertical spindle 56 1/min
Maximum rotary speed of the vertical spindle 1800 1/min
Travel length X-axis (mechanical feed) 900 mm
Travel length Y-axis (mechanical feed) 625 mm
Travel length Z-axis (mechanical feed) 400 mm
Maximum feed rate in X-axis 10.5 mm/s
Maximum feed rate in Y-axis 8.3 mm/s
Maximum feed rate in Z-axis 8.3 mm/s
Total power demand 4 kW
Machine height 2080 mm
Machine length 1980 mm
Machine width 1830 mm
Machine weight 2 t

Equipment

Universal swivel head (horizontal-vertical)
Lighting
